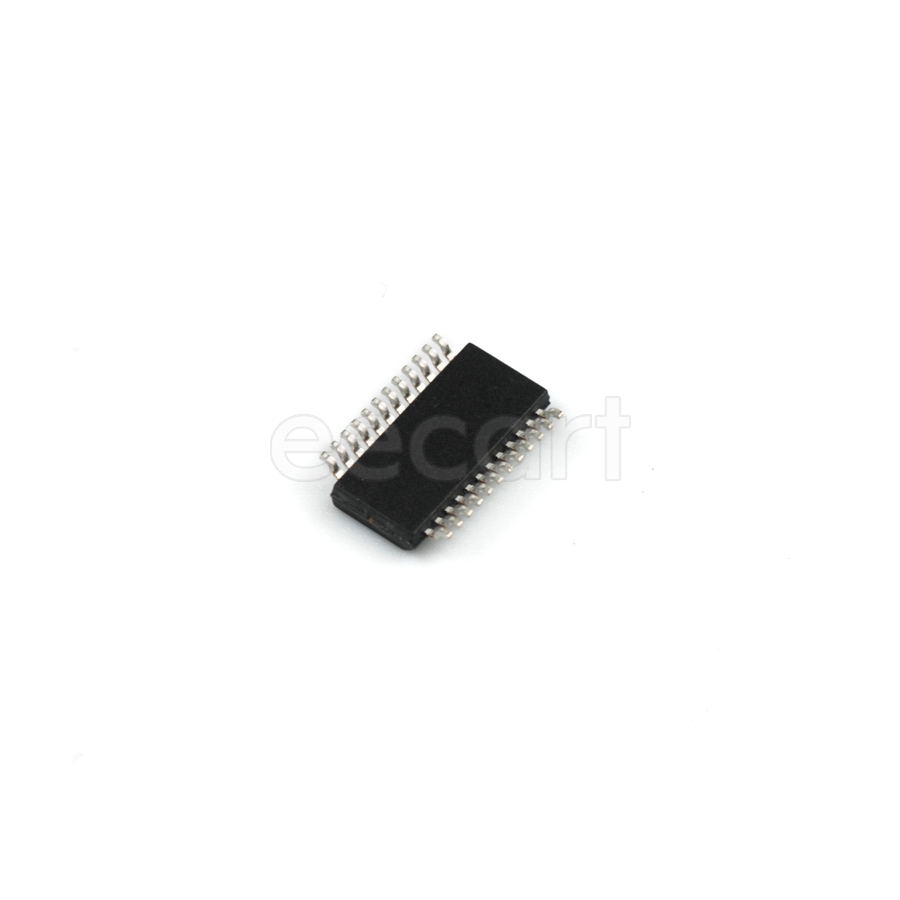

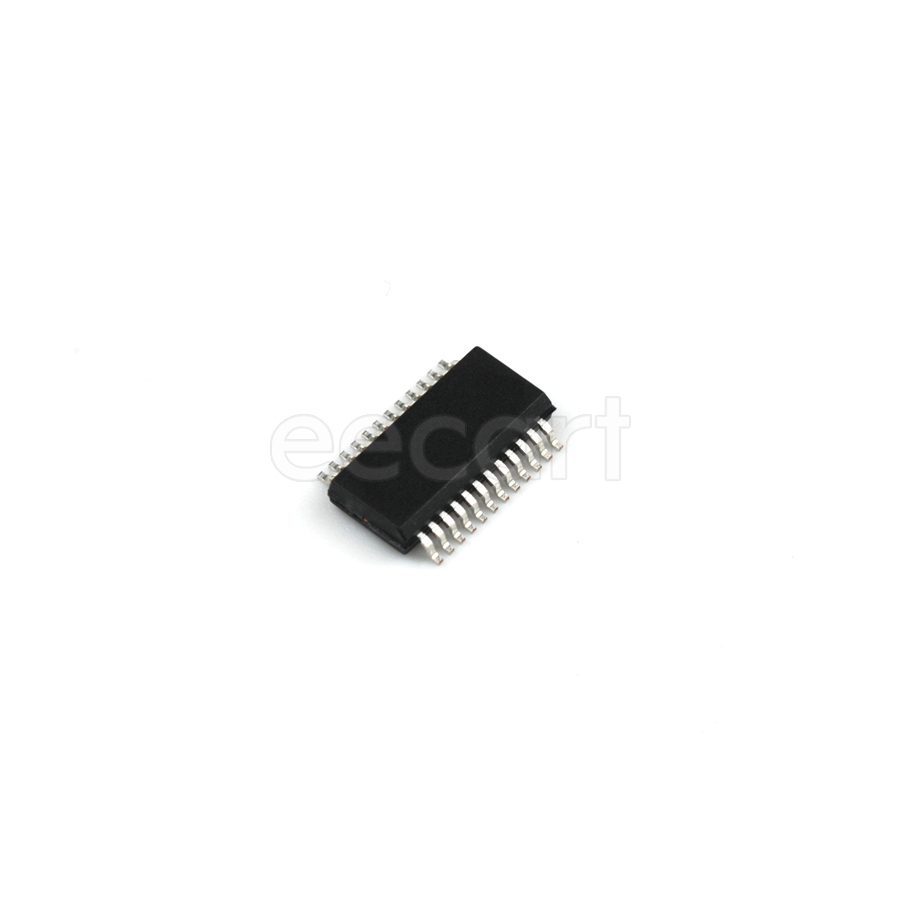

EFM8UB11F16G-C-QSOP24
Manufacturer:
Silicon Labs
Mfr.Part #:
EFM8UB11F16G-C-QSOP24
Datasheet:
Description:
Microcontrollers QSOP-24 SMD/SMT 8 bit 16 kb FLASH
| Parameter | Value |
|---|---|
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Frequency | 50 MHz |
| Interface | I²C, SMBus, SPI, UART, USART, USB |
| Memory Size | 16 kb |
| Memory Type | FLASH |
| Number of I/Os | 17 |
| Oscillator Type | Internal |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| RAM Size | 2.3 kB |
| Number of Segments | 0 |
| Schedule B | 8542390000 |
| Number of Digital IO | 17 |
| Max Clock Frequency | 50 MHz |
| ADC Resolution | 12 bit |
| Max Supply Voltage | 3.6 V |
| Min Supply Voltage | 2.2 V |
| Data Bus Width | 8 bit |
| Core Architecture(core/core processor) | CIP-51 8051 |
| Operating Supply Voltage | 2.2 V to 3.6 V |
| Packaging | Tube |
| RoHS | Compliant |
Stock: 91
Distributors
pcbx
pcbxUnit Price$2.34080
Ext.Price$2.34080
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.34080 | $2.34080 |
| 10 | $1.50211 | $15.02110 |
| 25 | $1.13278 | $28.31950 |
| 50 | $1.07488 | $53.74400 |
| 100 | $1.01993 | $101.99300 |
| 300 | $0.92488 | $277.46400 |
| 500 | $0.83869 | $419.34500 |
| 1000 | $0.76944 | $769.44000 |
